Product Details:
|
| Material: | Q345, Q235, Q345B, Q235B | Wall: | Sandwich Panel |
|---|---|---|---|
| Roof: | Sandwich Panel | Surface Treatment: | Paint Or Galvanized |
| Anti-seismic: | 10 Fission Resistant | Name: | Prefabricated Steel Buildings |
| High Light: | prefab storage buildings,prefabricated industrial building |
||
Industrial Large Span Steel Workshop Steel Structure Frame Construction
Specification:
1) Main Steel: Q345, Q235, Q345B, Q235B etc.
2) Column & Beam: Welded or Hot rolled H-section
3) The connection method of steel structure: welding connection or bolt connection
4) Wall & Roof: EPS, Rockwool, PU sandwich, corrugated steel sheet
5) Door: Rolled up door or Sliding door
6) Window: Plastic steel or Aluminum alloy window
7) Surface: Hot dip galvanized or painted
8) Crane: 5MT, 10MT, 15MT and more
Quotation:
1) Customized design is welcomed.
2) In order to give you an exact quotation and drawings, please let us know the length, width, eave height, and local weather. We will quote for you promptly.
By using AutoCAD, PKPM, MTS, 3D3S, Tarch, Tekla Structures (Xsteel) and etc. we can design the complex industrial building like office mansion, supermarket, shopping mall, steel factory, and workshop.
Feature and Material selection:
| Intensive bolt | Grade 10.9 |
| Turnbuckle bolt | M20+2, steel Q235, processing |
| Anchor bolt | M24, steel Q235, processing |
| Ordinary bolt | Galvanized bolt M20 |
| Ordinary bolt | Galvanized bolt M12 |
| Brace nut | Galvanized bolt M12 |
| Cross brace | Φ20 round steel bar Q235, process and painted (alkyd painting) |
| Angle brace | L50*5 angle steel Q235, process and painted (alkyd painting) |
| Column bracing | Φ25 round steel bar Q235, process and painted (alkyd painting) |
| Tie bar | Φ127*3 steel pipe Q235, process and painted (alkyd painting) |
| Batter brace | Φ32*2.5, Φ12 round steel bar Q235, process and painted (alkyd painting) |
| Roof panel | Corrugated steel plate or sandwich panel (EPS/fiberglass/rock wool/PU) |
| Wall panel | Corrugated steel plate or sandwich panel (EPS/fiberglass/rock wool/PU) |
| Edge cover | 0.4mm color plate, angle Alu. |
| Fittings & accessories | Nails, glue etc. |
| Unpowered ventilator | Diameter Φ600, stainless steel |
| Sky lighting band | 1.2mm FRP, double layer |
| Sliding door | sandwich panel door |
| Roof drainage system | |
| Gutter | 0.8mm color steel plate |
| Rainspout pipes | Φ160 PVC pipe |

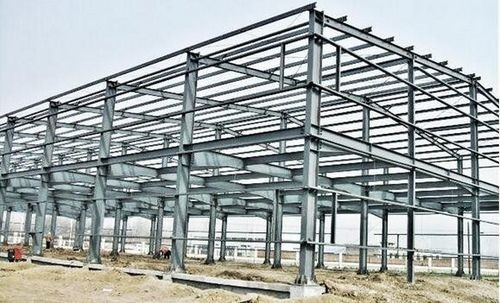

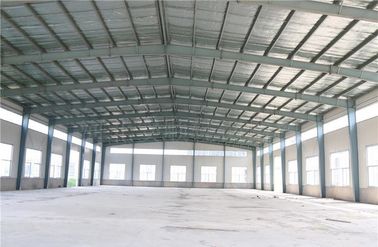

Project reference pictures
