Product Details:
|
| Steel Structure: | Hot Dipped Galvanized | Panel: | FRP Composite Panel |
|---|---|---|---|
| Window: | Aluminum Alloy | Door: | Steel Door |
| Toilet: | Sitting Toilet | Bathroom: | Shower Head With Curtain |
| High Light: | mobile toilet container,portable shipping container |
||
Sandwich Panel Integrated Composite Container Bathroom Sports Site Camp Use
Product Feature:
1. Made by EPS/PU/Rockwool FRP sandwich panel
We will customize the above panels for different custom projects due to local site climate and weather.
EPS: waterproof
Rockwool and Glasswool: fireproof
PU: heat preservation
FRP: strong waterproof
Silica Rock panel: waterproof and fireproof
2. Hot-dipped galvanized steel structure
In order for long-term use, we will do galvanization for the whole steel structure for corrosion resistance.
3. Integrated Rockwool composite ceiling
Factory full fabrication of composite ceiling, inside formed by Rockwool material and corrugated steel sheet, this provides enough heat insulation and strong water leakage resistance. Equipped with ceiling light embedded.
4. Integrated flooring
Steel purlins at the bottom with fiber cement sheet 12mm as the structural board, covered with PVC vinyl as flooring sheet to provide waterproof and fireproof usage.
5. Windows and doors
Integrated PVC sliding windows with Bars, and fireproof steel door.
6. Bathroom and washing basin
Each bathroom equipped with shower head fittings and washing basin
If clients want to modify the products to add sitting toilets, we can customize it.
Product specification:
| Wind resistance | Grade 11 |
| Earthquake resistance | Grade 7 |
| Snow load capacity of roofing | 0.6kn/m2 |
| Live load capacity of roofing | 0.6kn/m2 |
| Wall permitted loading | 0.6kn/m2 |
| Wall heat transmission coefficient | 0.35kcal/m2hc |
| Density of Rockwool | 60kg/m2 |
| Density of PU | 45kg/m2 |
| Density of EPS | 12kg/m2 |
| Density of Silica Rock | 20kg/m2 |
| Container loading | 2 units in 1*40HQ |
| Warranty | 1 year |
Product function:
1. Construction site use for mobile bathroom
2. Sports playground temporary bathroom
3. Shelters camp bathing area
4. Concert/music festival temporary bathroom
5. School equipped functional temporary bathroom

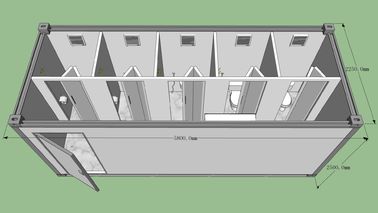

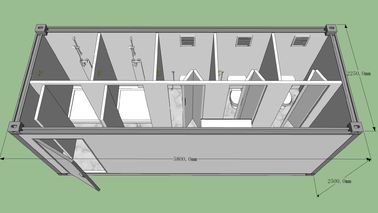

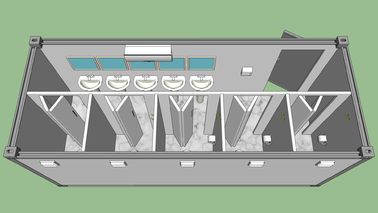

Product drawing:
